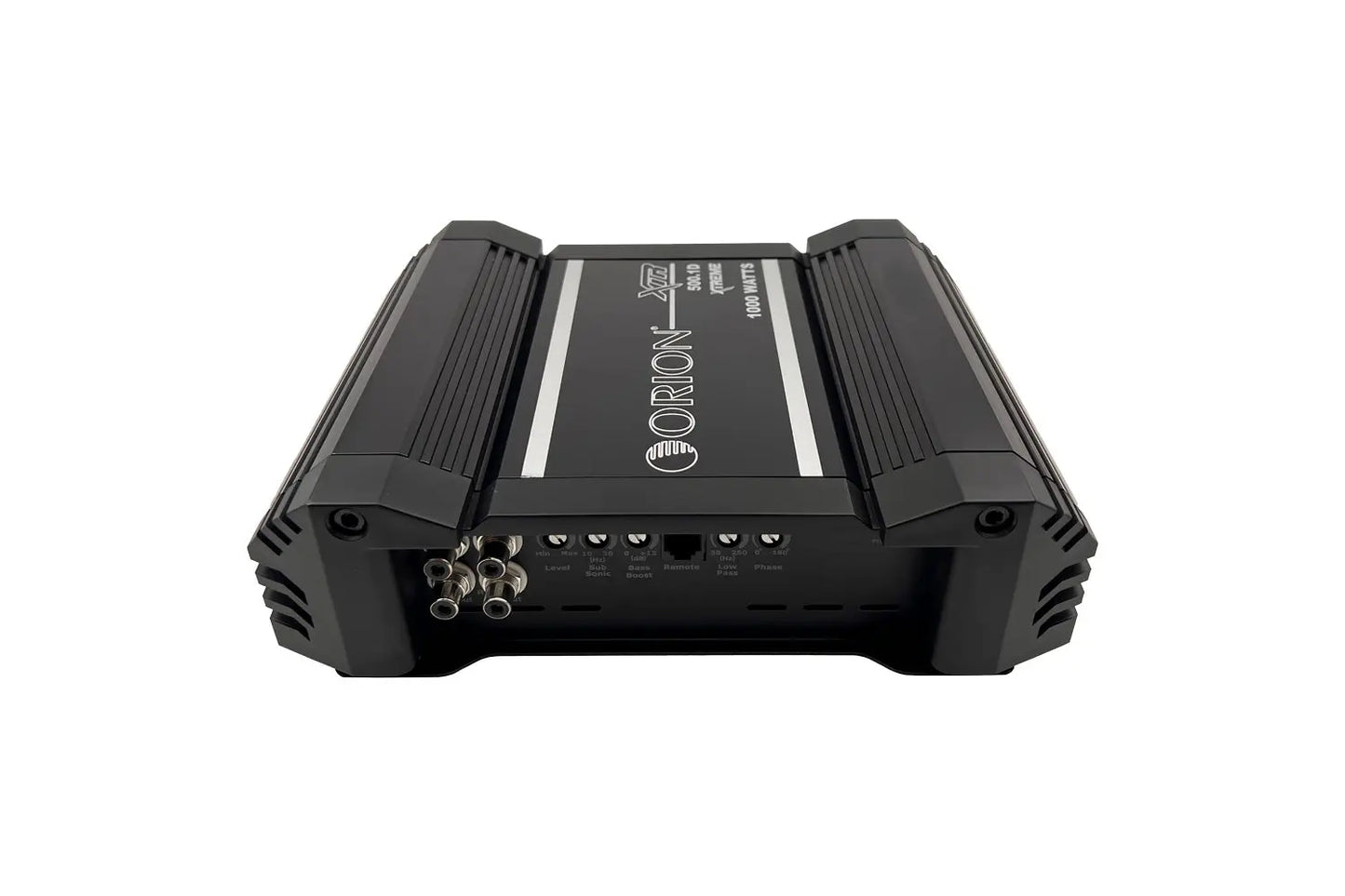

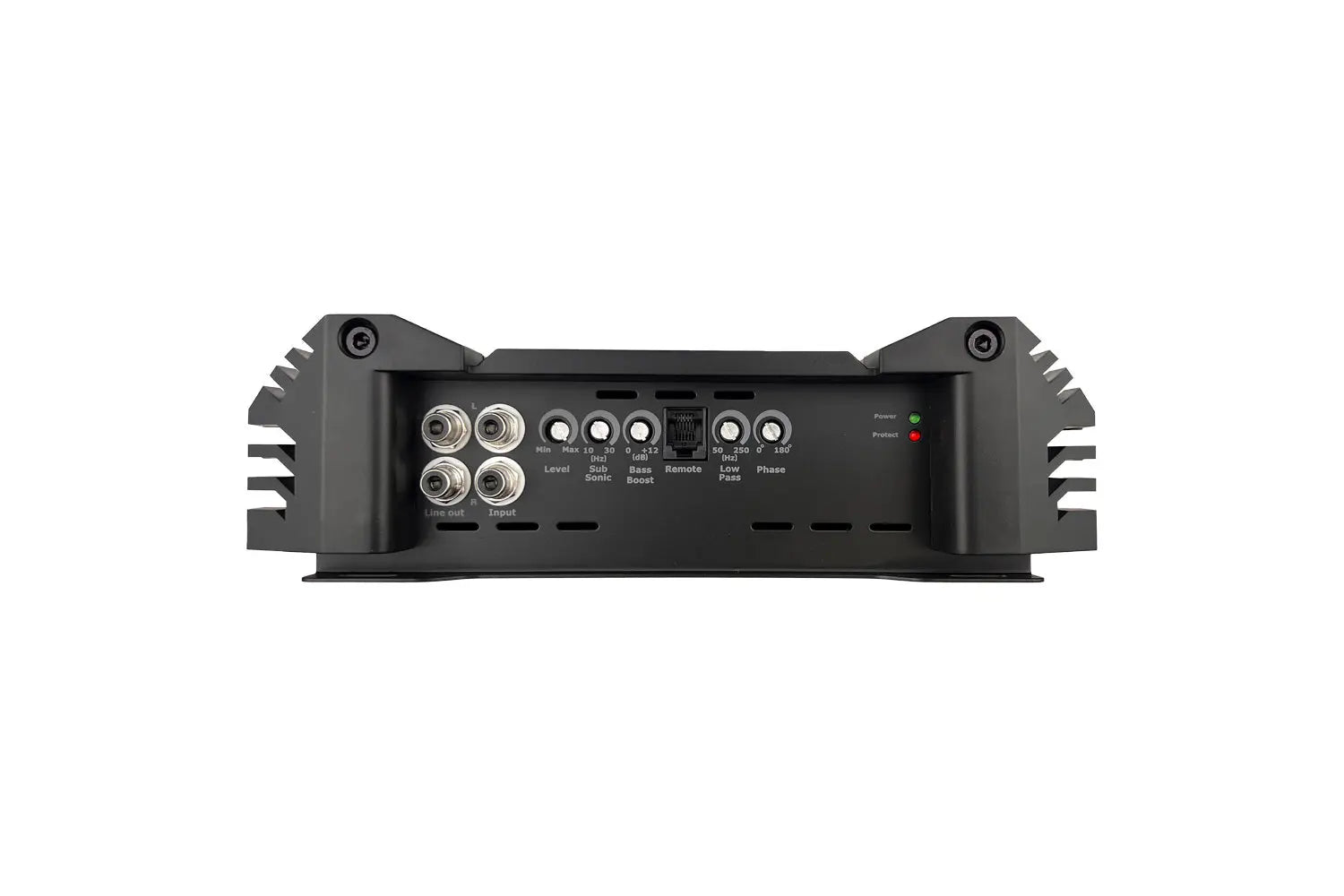

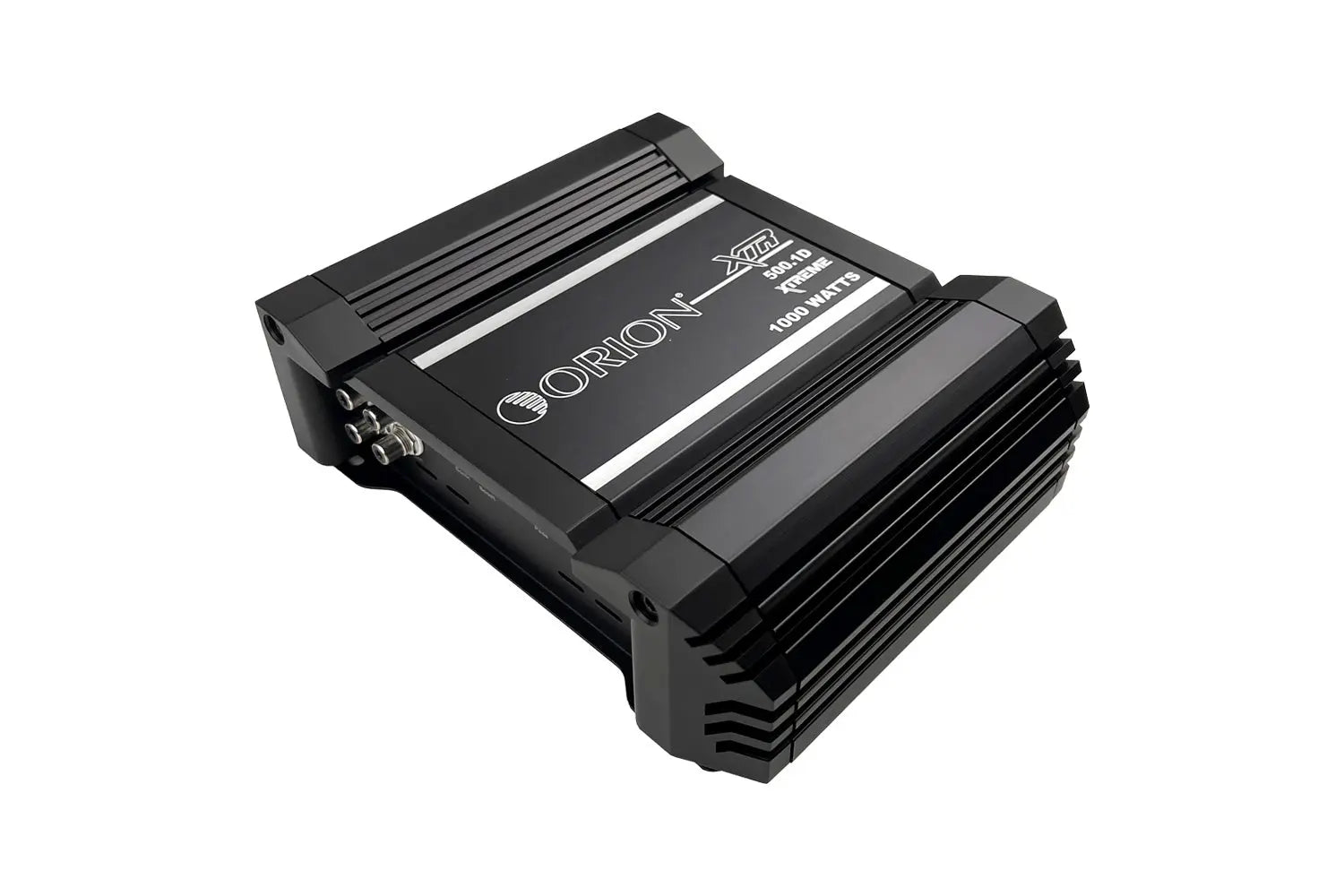

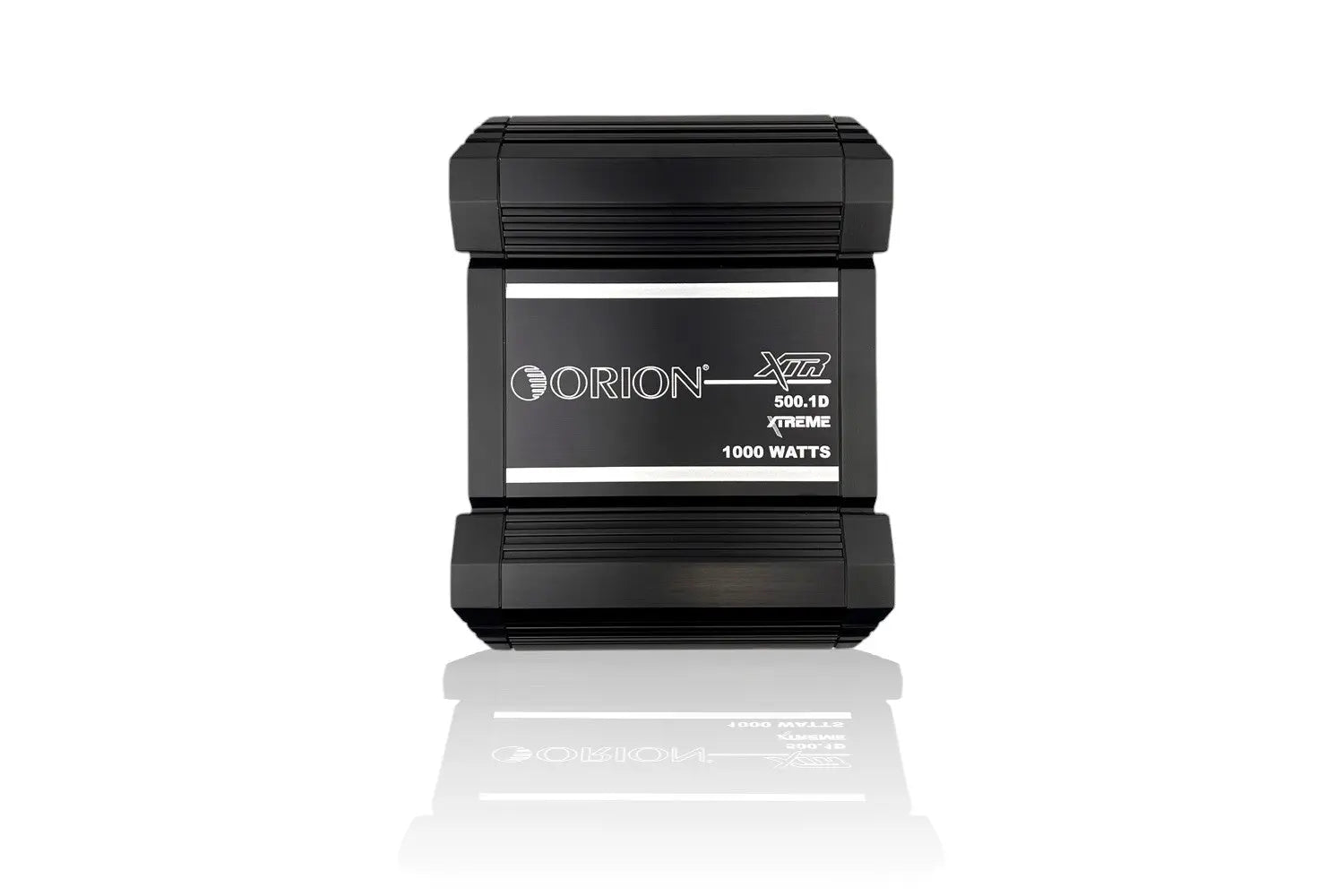

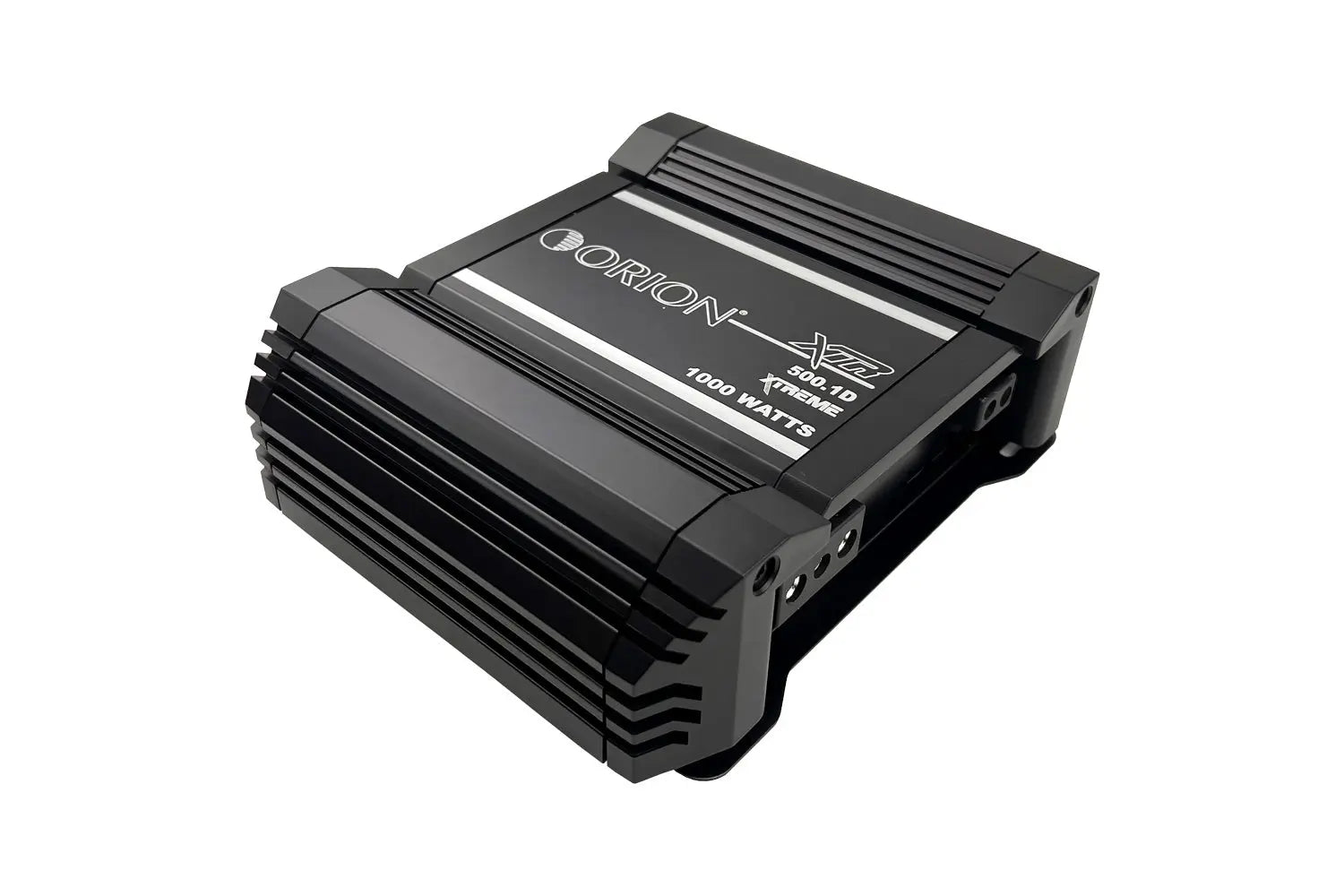

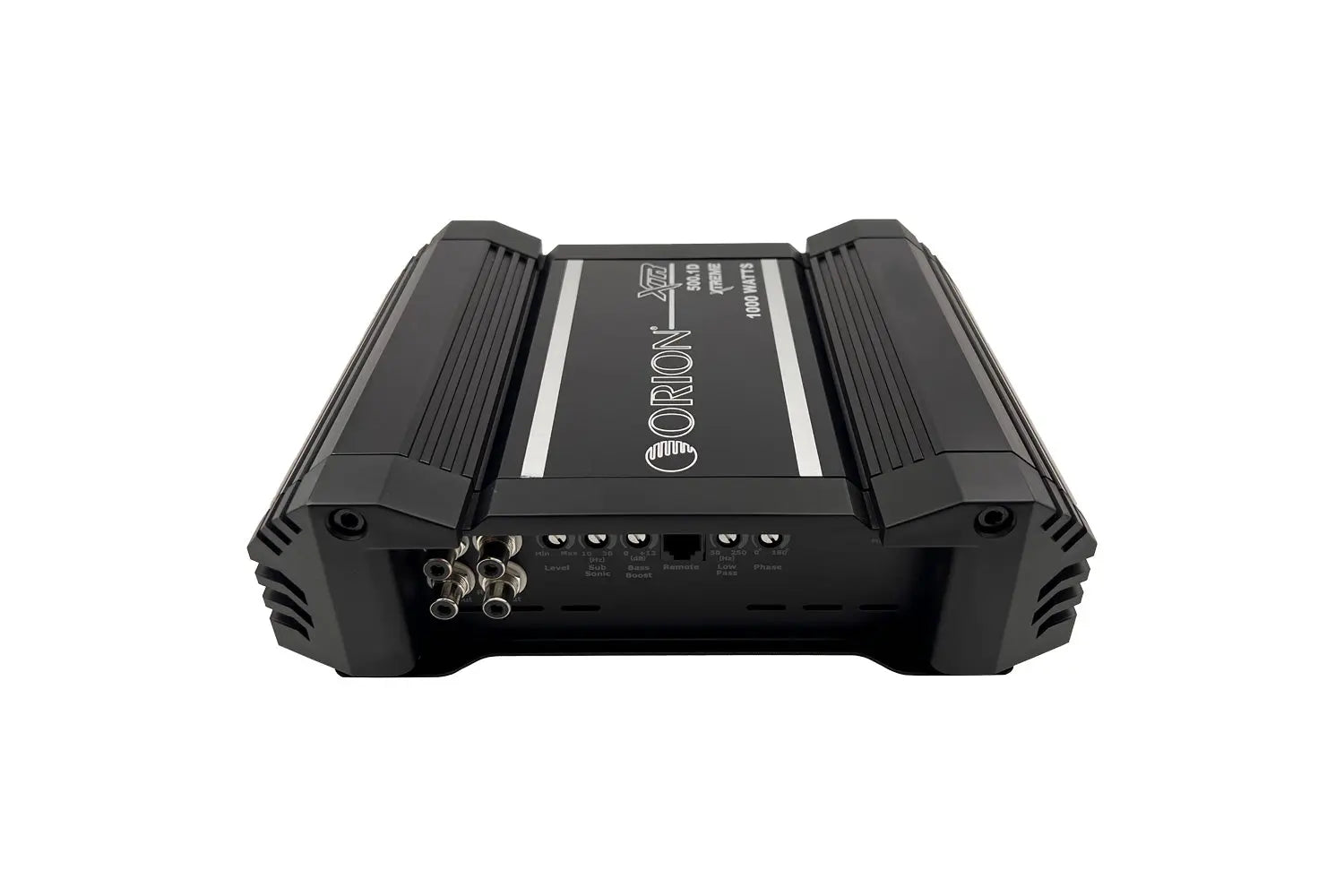

XTR500.1D XTR Series 500W RMS 1-Channel Class-D Amplifier
XTR500.1D XTR Series 500W RMS 1-Channel Class-D Amplifier
Couldn't load pickup availability
All MOSFET Power Supply & Output Stage
Heavy Gauge / High Current Custom Power and Speaker Terminals
12dB Octave Low-Pass Filter

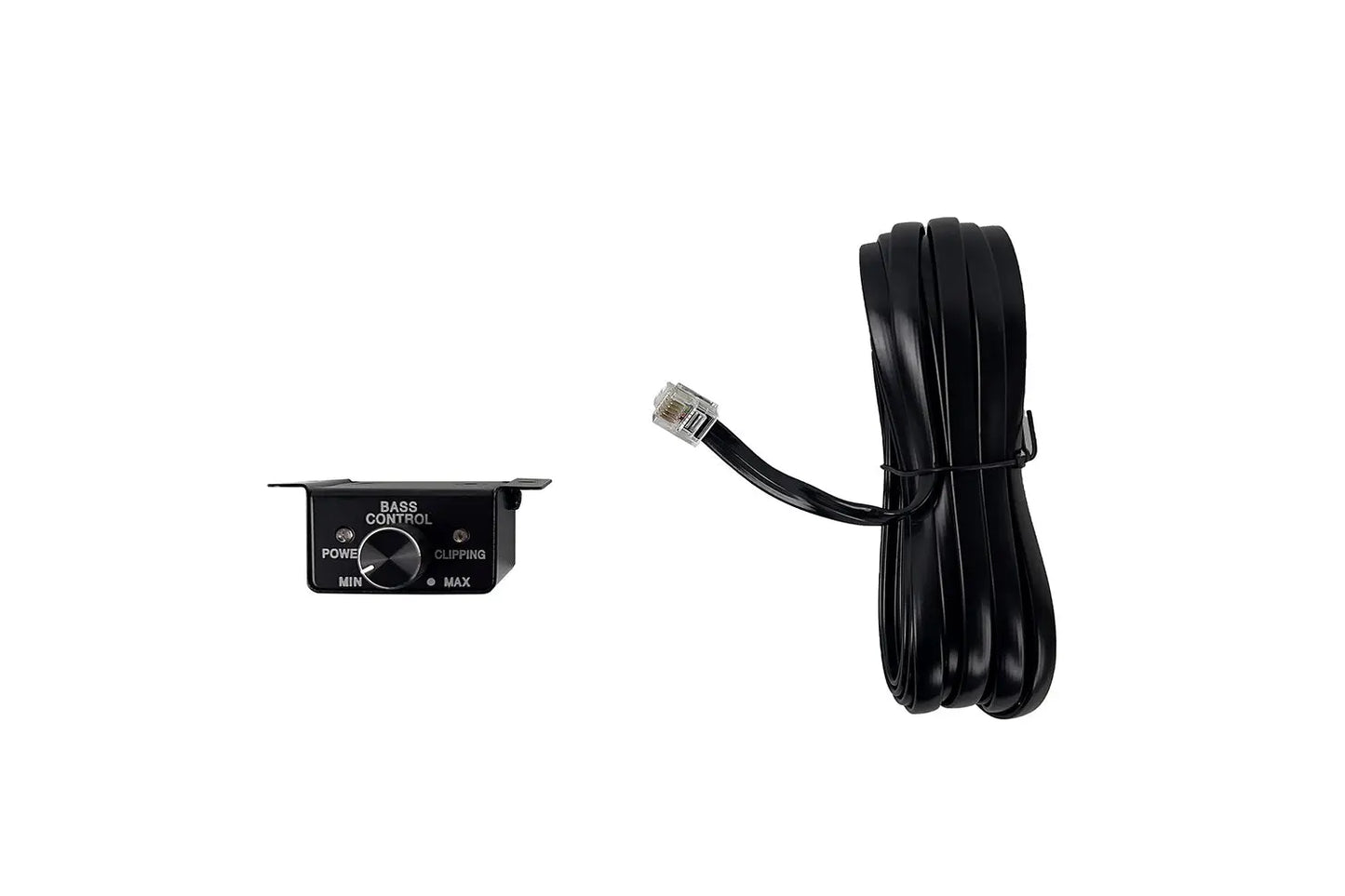

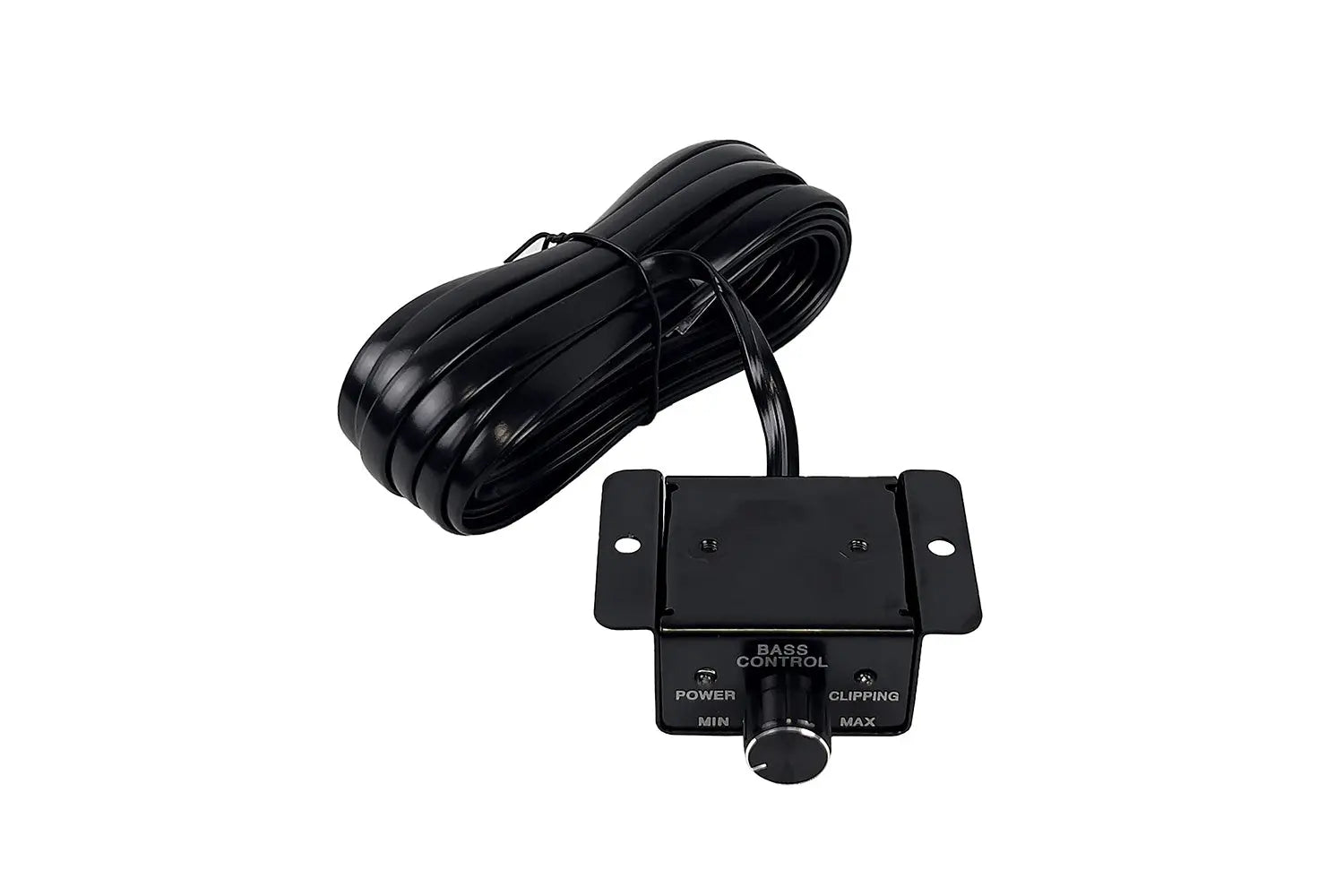

Remote Gain Controller Included
Electronic Crossover Network
Bass Boost Circuit
Power and Protection LED Indicators
Soft Turn-on/Turn-off
Turn-On Delay
Fault and Protection Monitoring
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
- RMS Power @ 4 Ohms @ 0.5% THD+N: 125W
- RMS Power @ 2 Ohms @ 0.5% THD+N: 250W
- RMS Power @ 1 Ohm @ 0.5% THD+N: 500W

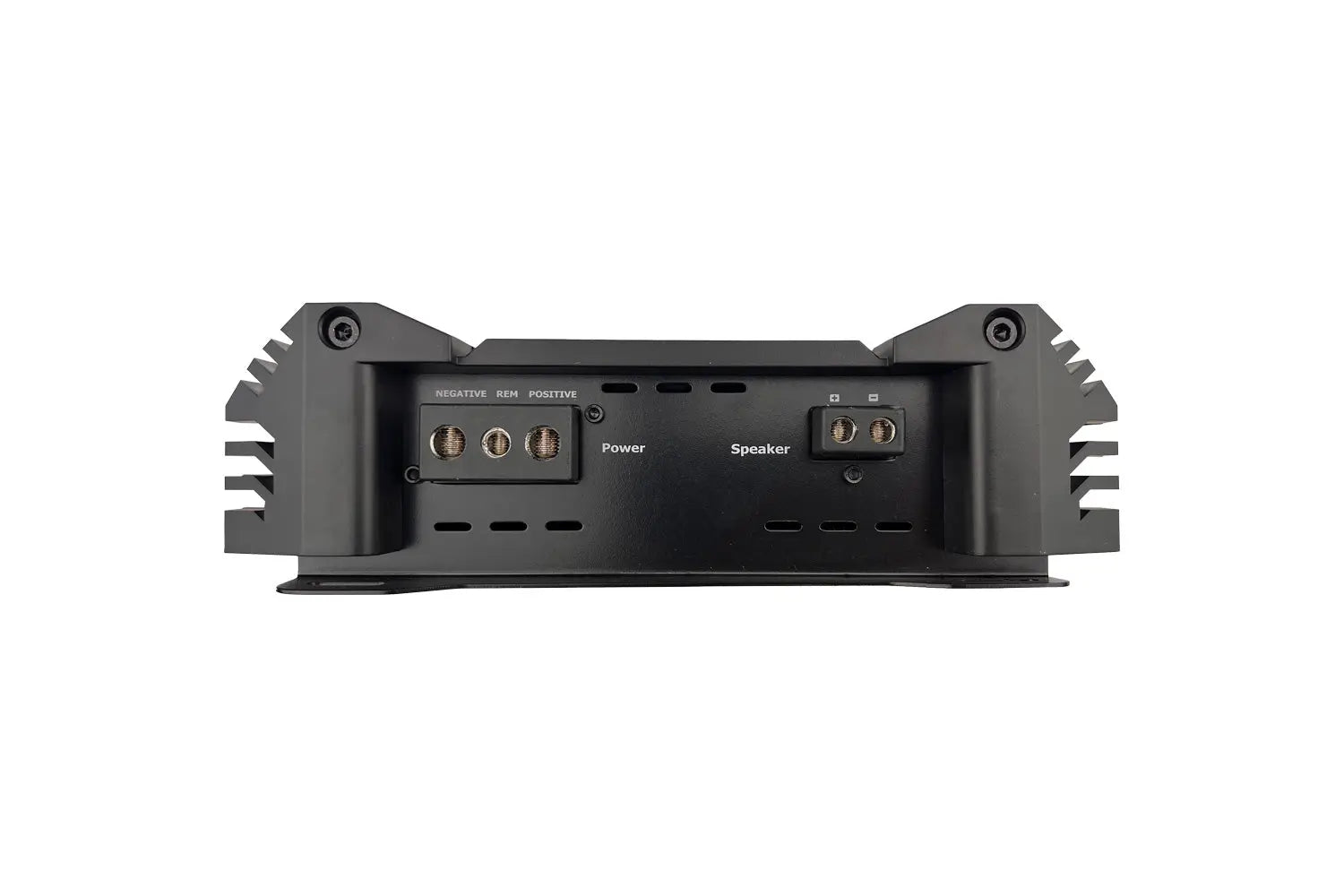

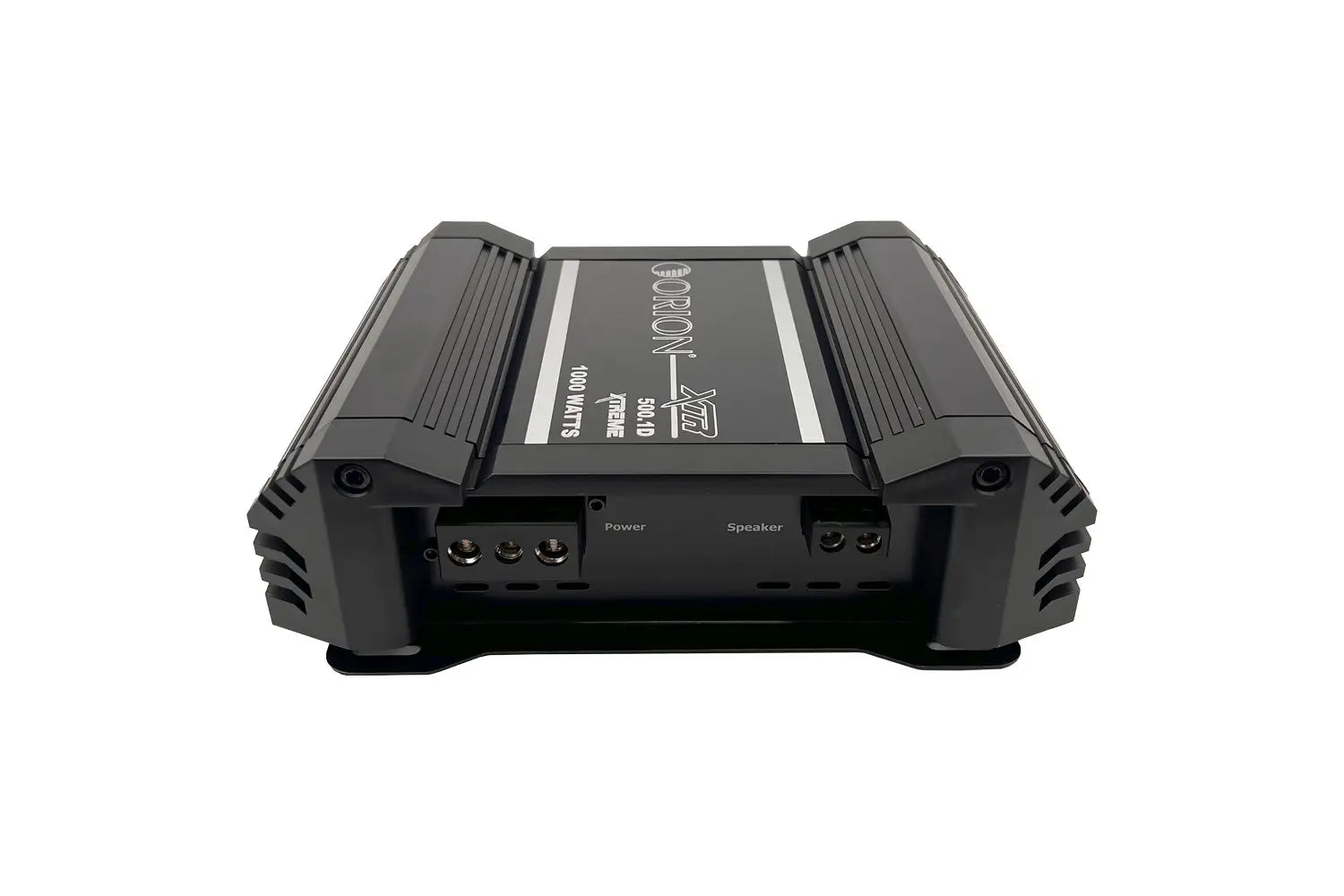

POWER TERMINAL MANAGEMENT
Positive Terminals: 1 x 4 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 12 AWG.
Speaker Output Terminals: 12 AWG.
- Frequency Response: 15Hz - 250Hz
- Linear Bandwidth 15Hz to 250Hz +/- 3 dB
- Low Pass Crossover: 30Hz - 300Hz
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >80%
- Damping Factor: 200dB
- Signal to Noise Ratio: >90dB
- T.H.D. & Noise: 0.5%
- Phase Shift: 0 - 180
- Bass Boost: 0-18dB Variable
- Subsonic Filter: 10 - 25Hz
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: **A recommended (* x **A ATC Fuses)
- Dimensions (L x W x H): 7.1" x 9.25" x 2.75" (180x235x70mm)
