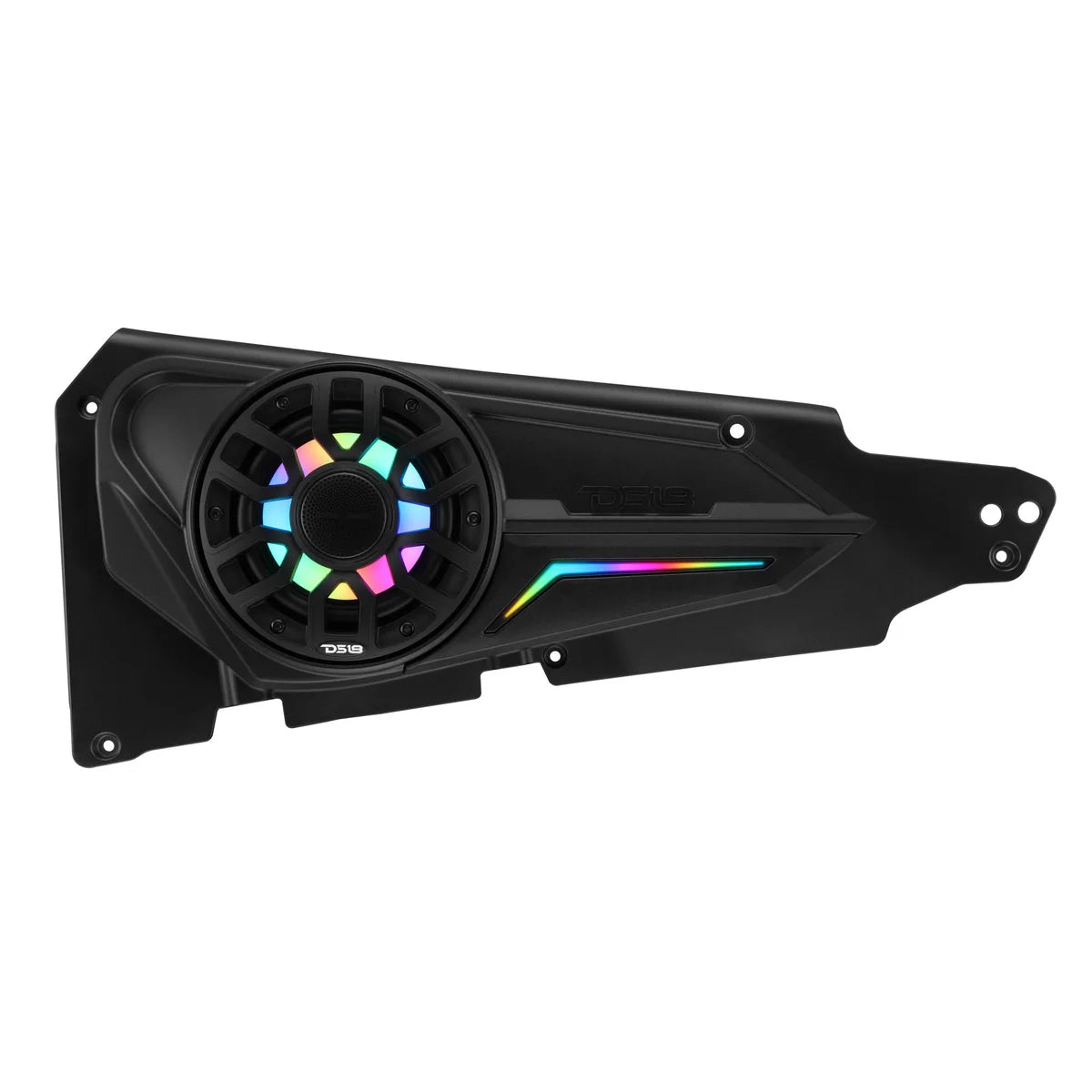

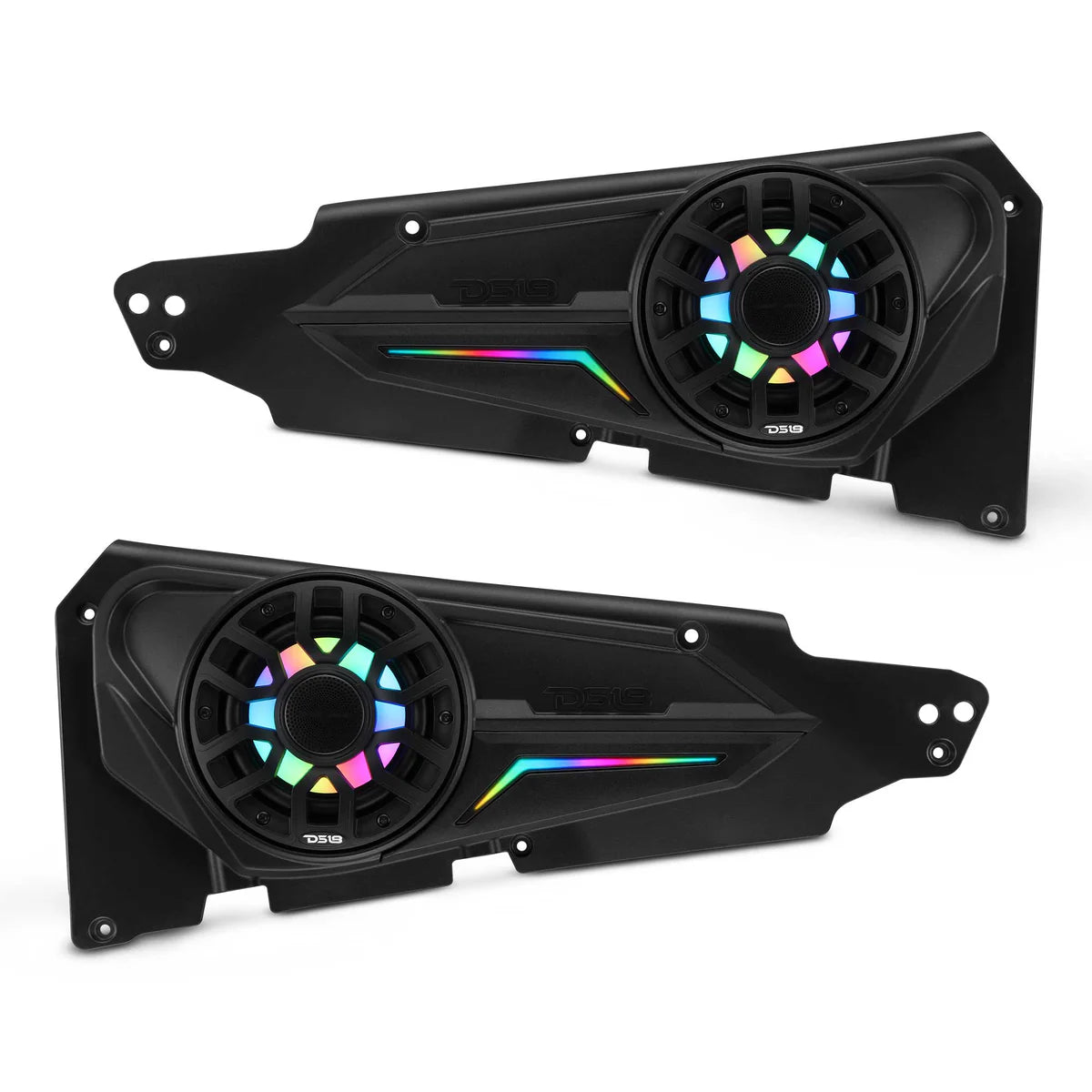

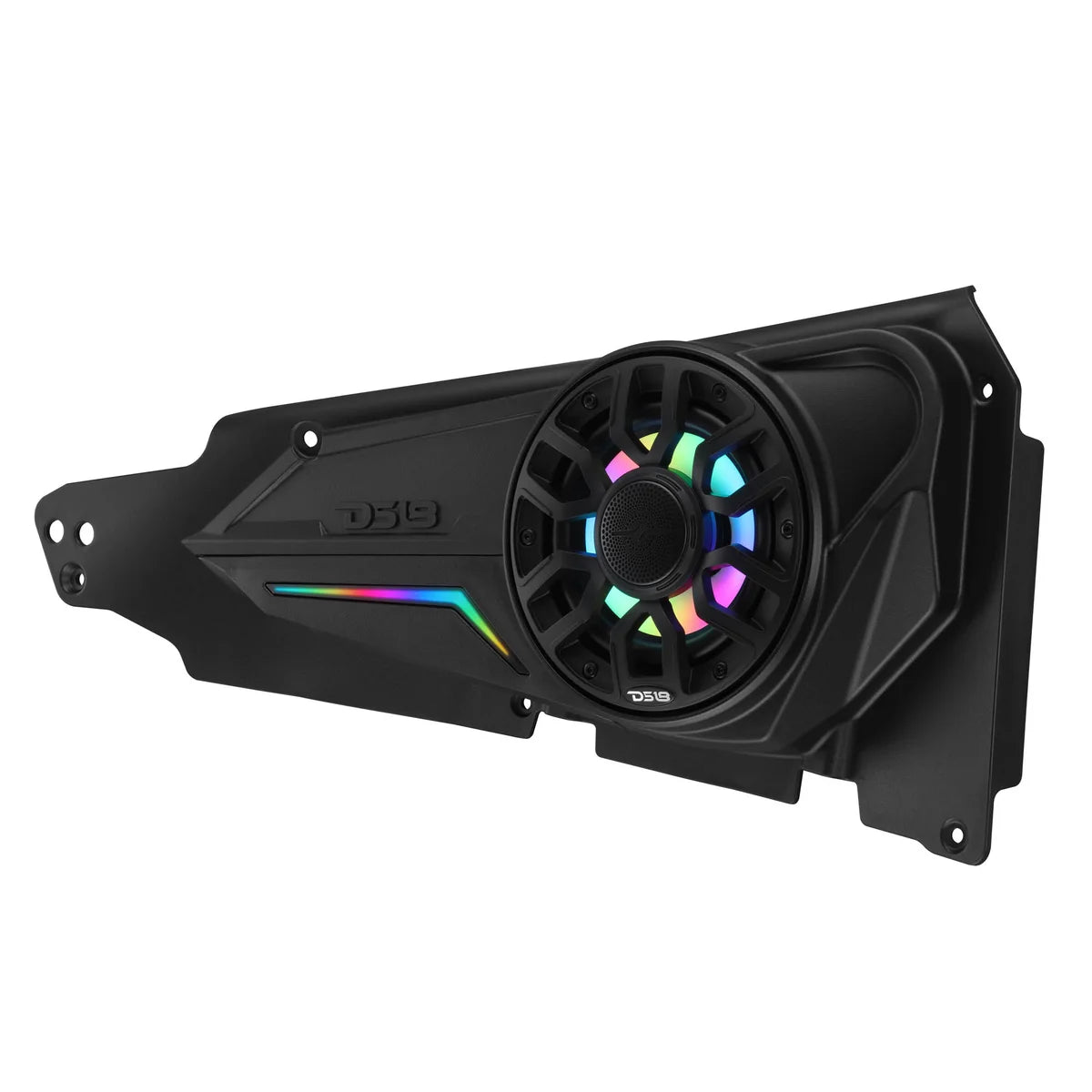

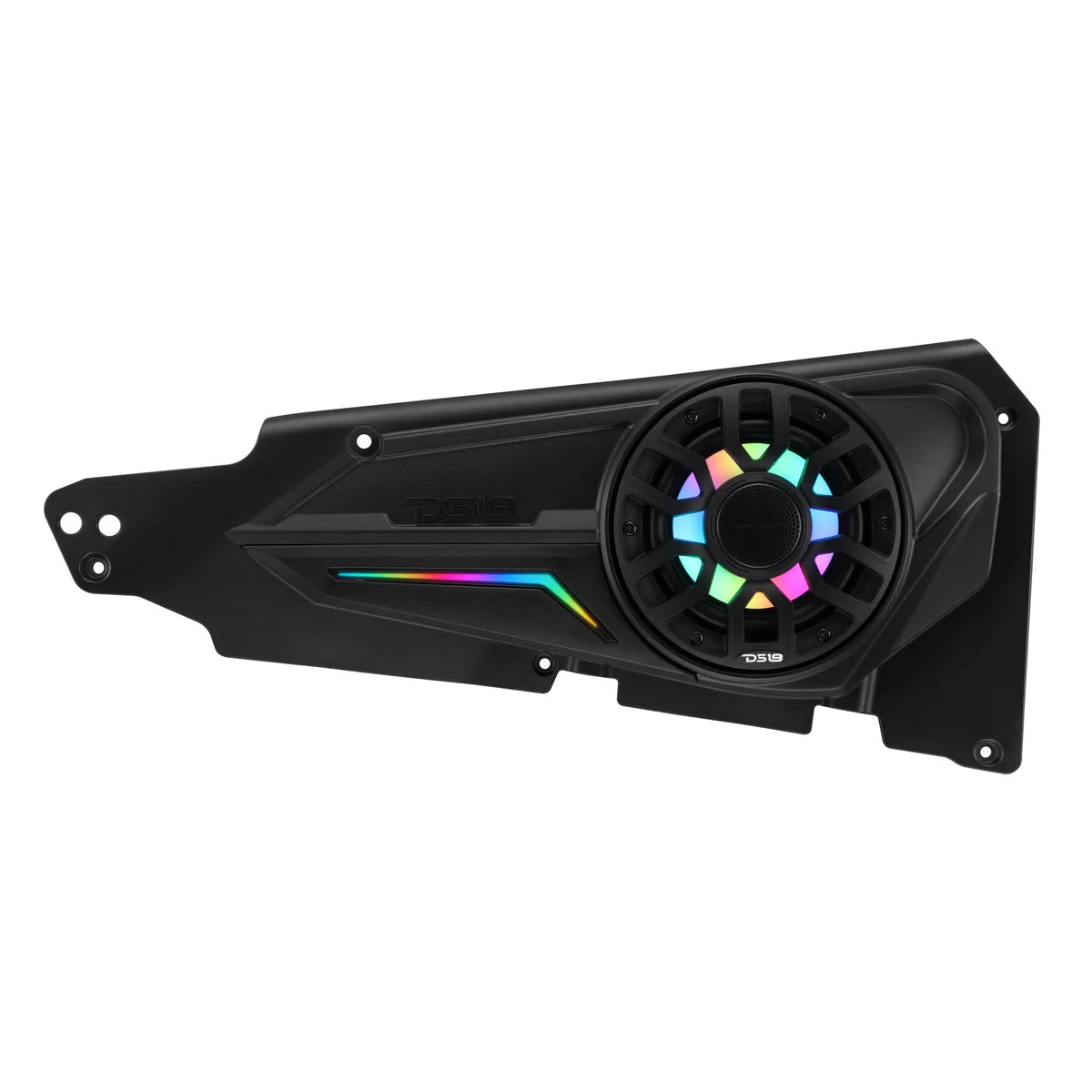

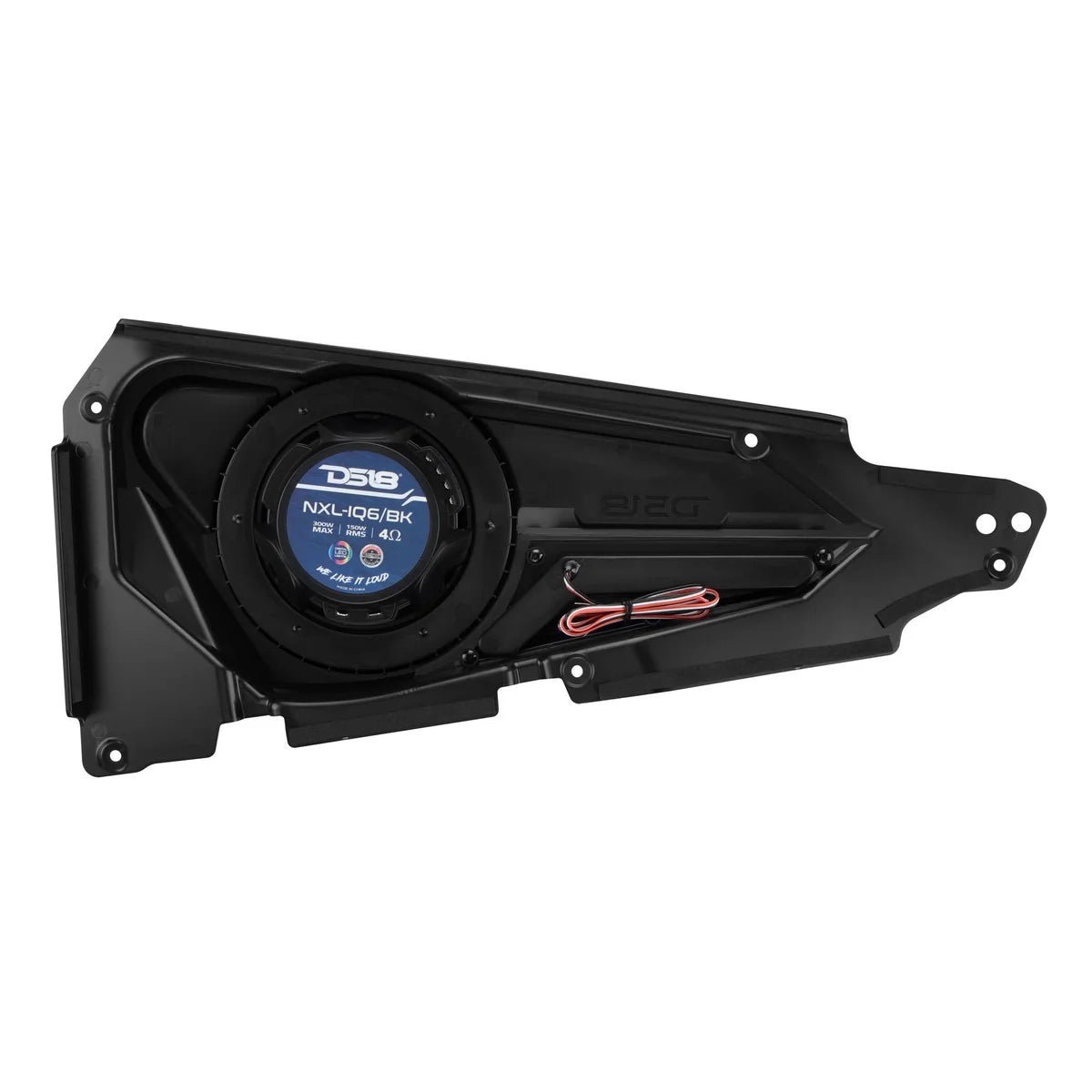

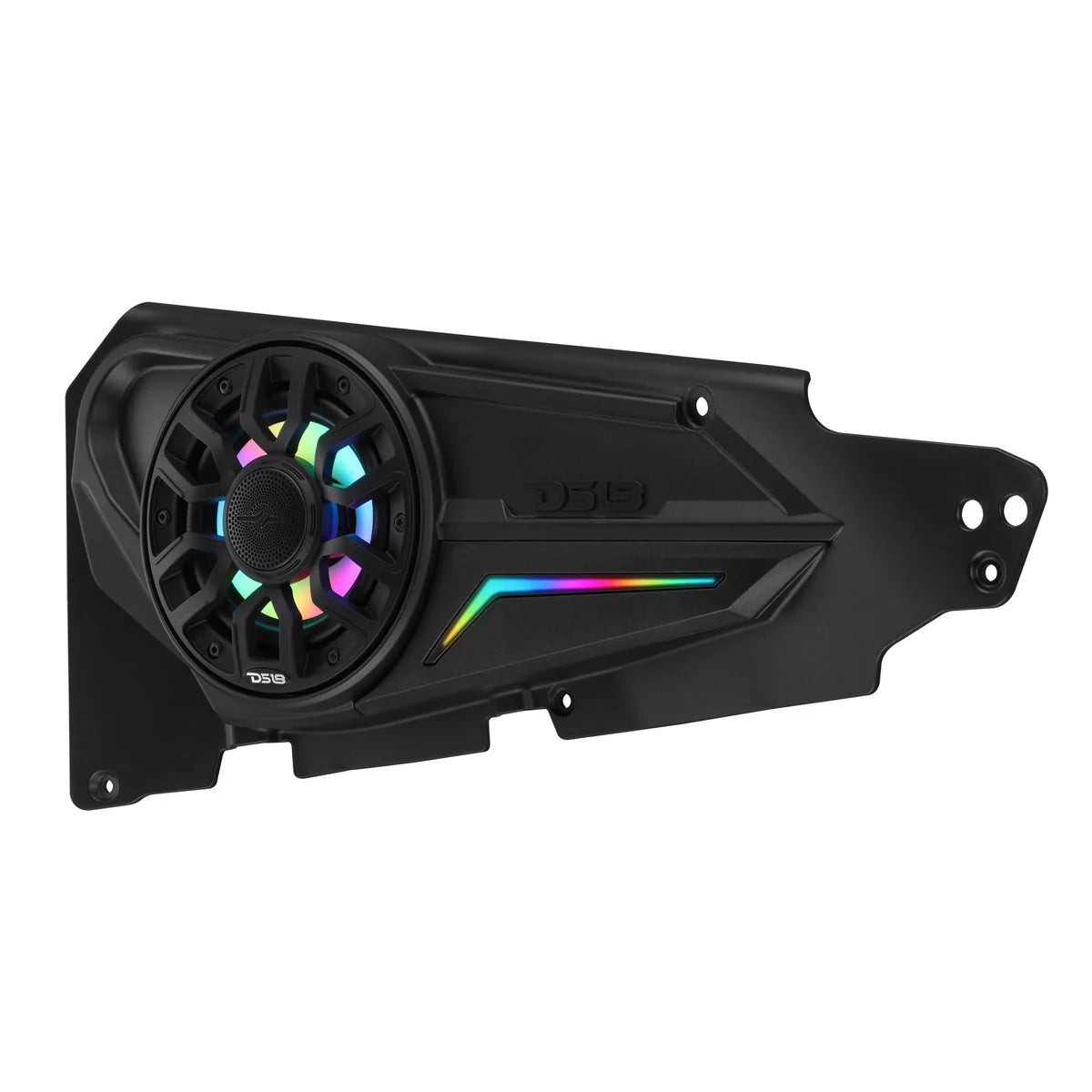

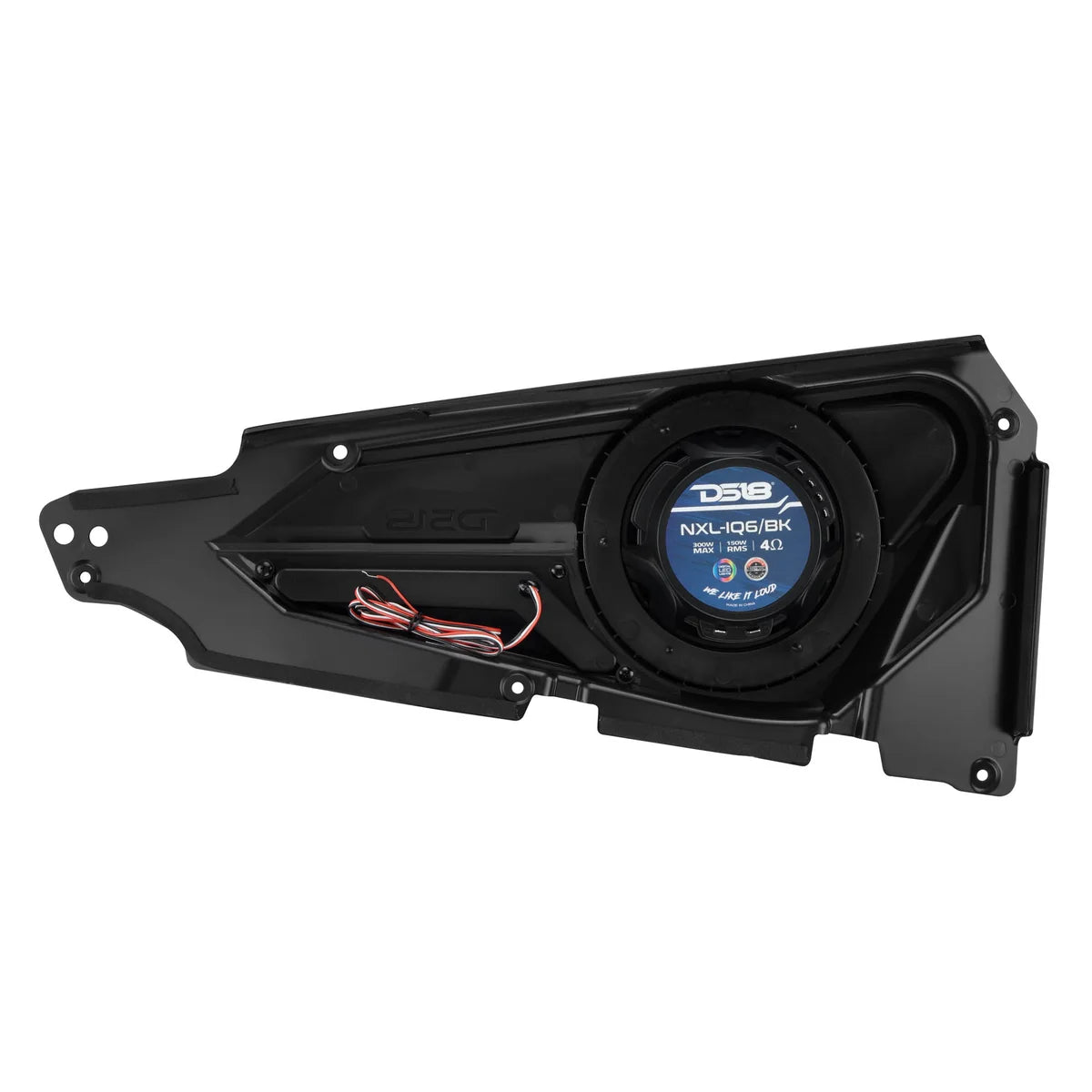

Polaris Front Door Panels Loaded with 6.5" NXL-iQ Coaxial Speakers for RZR-XP Models (2014-2023)

GENERAL

Panel Type
Front Bafle
Panel Material
Polyethylene (PE)
Finish Material
Black / OEM Texture
UV Protection
Yes
IP Rating
IP65
Input Wire
LED + SPK 5 Core OFC Tinned (2ft / 0.6m)
Sold as
Pair (Left & Right)
OEM Fit
Yes
Compatible Model / Year
RZR-XP / 2014-2023 2& 4 Doors Models

SPEAKER SPECIFICATIONS (NXL-IQ6/BK)

Speaker Type / Size
6.5" Marine Grade Coaxial Speaker with Digital LED Lights and Bullet Tweeter
Total Impedance
4-Ohm
RMS Power Handling
150W
MAX Power Handling
300W
Sensitivity (1w/1m)
95dB
Frequency Response
45Hz - 20KHz
Recommended High-Pass Crossover
60Hz
Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Cone Material
Polypropylene Injected (PPI)
Surround Material
Rubber
Basket Material
Injection Molded Composite PC with UV Protection coating
Magnet Material
Ferrite + Neodymium
Magnet Weight
13 oz + 1.1oz

TWEETER SPECIFICATIONS (NXL-IQ6/BK)

Speaker Type
Floating Bullet Tweeter
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Aluminum
Bullet Material
Injection Molded Composite PC with UV Protection coating
Magnet Material
Neodymium (N35H)
Magnet Weight
0.4 Oz

MEASUREMENT

Panel Overall Height
10.75" / 273mm
Panel Overall Width
23.93" / 608mm
Panel Overall Depth
3.14" / 80mm
